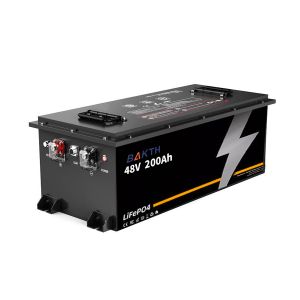

High Cycle Life 48V 200Ah LiFePO4 Golf Cart Battery

Brand Name : BAKTH

Certification : UN38.3

Place of Origin : China

MOQ : 2PCS

Price : US$675

Payment Terms : T/T

Supply Ability : 10000PCS/Month

Delivery Time : 15~18 days

Packaging Details : Carton Package

Recharge Cycles : 500

Charging Time : 2 hours

Type : LFP

Capacity : 5000mAh

Discharging Temperature : -20-60℃

Batteries : Li-ion18650 cell

Max Discharge Current : 1C

Electric Energy : 18 Wh

Function : Provide Power

Storage Temp : -5℃~35℃

Charge Cycles : 300 times

Battery Size : 21700

Open Voltage : 3.6 V

Manufacturer : Varies Based On Model

Cycle Time : 500times

Contact Now

Product Review

The 48V 200Ah LiFePO4 battery is engineered for high performance and durability, making it an ideal choice for a diverse range of electric vehicles and equipment. With a nominal voltage of 51.2V and a substantial capacity of 200Ah, this battery provides a reliable energy source with a total nominal energy of 10.24 kWh. It is designed to offer long-lasting performance, supporting up to 6,000 cycles at 80% depth of discharge and over 15,000 cycles at 60% depth of discharge. The battery’s robust metal shell and advanced Battery Management System (BMS) ensure safety and efficiency, while its wide temperature range of -20°C to 65°C makes it adaptable to various operating conditions.

Ideal for applications such as golf carts, low-speed vehicles, electric motorcycles, and floor cleaning machines, this battery delivers high performance with minimal self-discharge of less than 2% per month. It includes advanced features such as self-heating, Bluetooth connectivity, and optional solar integration to enhance its versatility. With its IP67 rating, it is well-protected against dust and water ingress, ensuring reliable operation in challenging environments.

Specification


Nominal Voltage 51.2V
Nominal Capacity 200Ah
Nominal Energy 10240Wh
Dimensions [L x W x H] 940*340*250mm
37 x 13.4 x 9.8 inches
Weight 90KG
198.4 lb
Max Charge Voltage 58.4V
Max Cut-off Discharge Voltage 40V
Standard Charge Current 40A (Fully charged in 5 hours)
Max Continuous Charge Current 200A
Max Continuous Discharge Current 200A
Peak Discharge Current 200A
Internal Resistance <10 mΩ
Charge Temperature 0°C ~ 60°C
Discharge Temperature -20°C ~ 65°C
Cycle Life >6,000 Cycles (80% DOD)
>15,000 cycles (60% DOD)
Self-Discharg <2% per month
Usage Locations Golf Carts, Club Car, Sightseeing Car, LSV Car, 2 Wheels / 3 Wheels / 4 Wheels Electric Scooter, Electric Trishaw, Electric Rickshaw, Electric Motorcycle, Electric Tricycle, Cabin Car, Electric Cargo Tricycle, Cargo Express Cargo Car, AGV, AMR, LGV (Laser Guided Vehicle), Floor Scrubber, Floor Clean Machine, Floor Polisher, Robot, etc.
Battery Shell Metal
Optional Upgrades Self-Heating, Fast Charger, Bluetooth, APP, WiFi, 4G, GPS, RS485, RS232, CAN-bus, Modbus, TCP/IP, Active Balance, LCD Screen, Solar Panel, Solar Controllers, MPPT, Inverters, LED Indicator Light, TACP, Fan, Heatsink, Circuit Breaker, Anti-Theft, etc.
Vent Yes
Power Switch Yes
Design Life 10 Years
Warranty 5 Years
User Manual Yes
Silkscreen Yes
Label Design / Printing Yes
Laser Logo Yes
Certifications UN38.3 / UN3480 / MSDS / UL 1642 (Cells) / IEC 62133 (Cells) / ISO 9001 (Factory)

Key Fetures

  1. High Capacity and Long Life: With a nominal capacity of 200Ah and a cycle life exceeding 15,000 cycles at 60% DOD, this battery offers unparalleled longevity and reliability.
  2. Wide Temperature Range: Operates efficiently in temperatures ranging from -20°C to 65°C, making it suitable for a variety of environments.
  3. Advanced BMS Protection: Equipped with a sophisticated Battery Management System to safeguard against overcurrent, overcharge, overdischarge, and other potential issues.
  4. Versatile Applications: Perfect for golf carts, low-speed vehicles, electric scooters, and more, providing versatile and high-performance energy solutions.
  5. Optional Upgrades: Features like Bluetooth connectivity, self-heating, and solar integration enhance functionality and user experience.
